Working Principle
Raw mate rial is feed into the machine from equipment inlet and move forward continuously along with the horizontal direction under vibratory power The hot air passes through fluidized—bed and exchange with raw materials。damp，then the wet air is dusted by cyclone separator and exhausted from air outlet，the d ried material is discharged through finished material outlet.

Material to be dried
It is applicable for d rying，cooling of powder or granule state materials，such as citric acid，monosodiurn glutamate，borax，ammonium sulphur,compound fertilizer，piece of radish，bean，lees，seed，mine reside and sugar in chemical， pharmaceutlcal，foodstuff，grain，mine and so on industries.

Characteristics
◎Adopt vibration motor，it is smooth in running and convenient in maintenance.The noise is low and the service life is long.
◎The state of fluidization is uniform and no dead gaps or broken phenomenon so to have dry，cool product.
◎It is good in adjustment and wide in the field of application The thickness of raw material and the speed of raw material to be moved inside the machine and the change of vibration range can be steeples.
◎The damage the surface of raw material is small So it can be used for raw materials that are easily to be broken If the granule is not normal，the effect of process can not be effected
◎The structure is fully seal it is effective to p revent from cross pollution of raw materials and the working environment is clean.
◎The mechanical and heat are high and its effective of energy saving.Compared to ordinal drye r，30-60％of energy is saved.


Technical Parameter

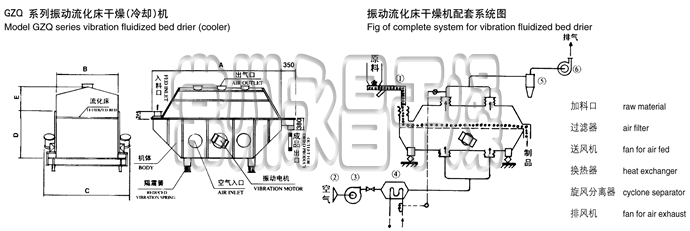

Size Model	A	B	C	D	E	F	Weight(kg)
ZLG3×0.30	3000	300	1350	900	430	1650	1250
ZLG4.5×0.30	4500	300	1350	900	430	1650	1250
ZLG4.5×0.45	4500	450	1550	950	430	1700	1670
ZLG4.5×0.60	4500	600	1650	950	430	1700	1670
ZLG6×0.45	6000	450	1650	950	430	1700	2100
ZLG6×0.60	6000	600	1700	1000	500	1700	2410
ZLG6×0.75	6000	750	1850	1000	600	1850	2840
ZLG6×0.9	6000	900	2000	1000	600	1850	3160
ZLG7.5×0.60	7500	600	1850	1000	600	1850	3200
ZLG7.5×0.75	7500	750	2000	1000	600	1850	3600
ZLG7.5×0.9	7500	900	2100	1000	600	1850	4140
ZLG7.5×1.2	7500	1200	2500	1150	800	2050	5190

Model	Area of fluidized-bed (M2)	Temperature of inlet air (oC)	Temperature of outlet (oC)	Capacity to vapor moisture (kg)	Vibration motor
					Model	Power Kw
ZLG3×0.30	0.9	70-140	40-70	20-35	ZDS31-6	0.8×2
ZLG4.5×0.30	1.35	70-140	40-70	35-50	ZDS31-6	0.8×2
ZLG4.5×0.45	2.025	70-140	40-70	50-70	ZDS32-6	1.1×2
ZLG4.5×0.60	2.7	70-140	40-70	70-90	ZDS32-6	1.1×2
ZLG6×0.45	2.7	70-140	40-70	80-100	ZDS41-6	1.5×2
ZLG6×0.60	3.6	70-140	40-70	100-130	ZDS41-6	1.5×2
ZLG6×0.75	4.5	70-140	40-70	120-140	ZDS42-6	2.2×2
ZLG6×0.9	5.4	70-140	40-70	140-170	ZDS42-6	2.2×2ZLG
ZLG7.5×0.60	4.5	70-140	40-70	130-150	ZDS42-6	2.2×2
ZLG7.5×0.75	5.625	70-140	40-70	150-180	ZDS51-6	3.0×2
ZLG7.5×0.9	6.75	70-140	40-70	160-210	ZDS51-6	3.0×2
ZLG7.5×1.2	9	70-140	40-70	200-260	ZDS51-6	3.0×2

* The above is the largest evaporation.

•
•
